2-Foot Dura Slope Plastic Channel Grate in Brick Red – NDS Model 665

Description

2′ Dura-Slope Channel Grate, Brick Red

• Use with Dura Slope Channel Drains and Dura Slope Catch Basins #DS-340
• (2) Grates required per Dura Slope Channel Drain.
• (1) Grate required per Dura Slope Catch Basin
• Requires 2 Screws Per Grate #629 (Not Included – If purchasing with a Dura-Slope drain or catch basin, then the screws will come preinstalled with the Dura-Slope.)

Specifications

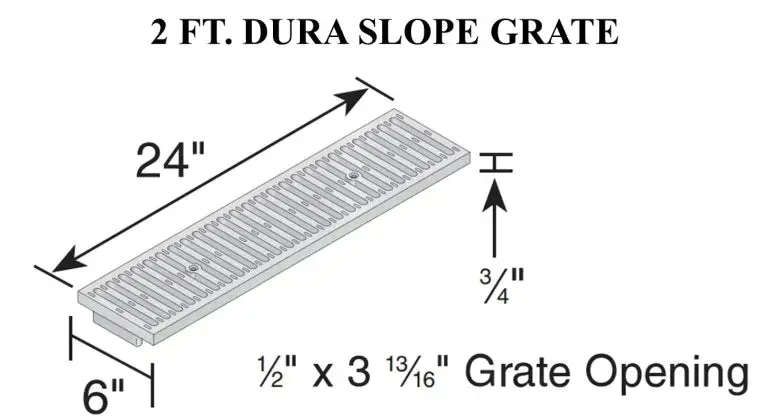

Product type: GratesMaterial: UV Protected High Density Polyethylene (HDPE)Color: Brick RedLength: 24 in.Width: 6 in.Height: 0.75 in.Weight: 2.82 lbADA: YesLoad Rating: Class B

• Loads of 61-175 psi.
• Recommended for medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 m.p.h.

Style: FlatCapacity: 27 GPM per foot with 1/2” of head.Grate Opening: 1/2” x 3-13/16”

Downloads

• 2 Ft. Dura Slope Grate Spec Sheet
• Dura Slope Installation Manual
• Dura Slope Quick Start Guide
