AGF RC A11CLSV3 Digital Coreless Micro Servo – Ultra-Fast Response

Description

The AGFrc A11CLS V3 servo is for 1/24 and 1/28 scale Mini-Z cars. Featuring a high-quality coreless motor, titanium gears, and dual ball bearings, it ensures smooth, stable performance. Its programmable function allows parameter adjustments, offering 0.065-second speed and 1.4 kg-cm torque in a compact, lightweight design—ideal for competitive Mini-Z racing.

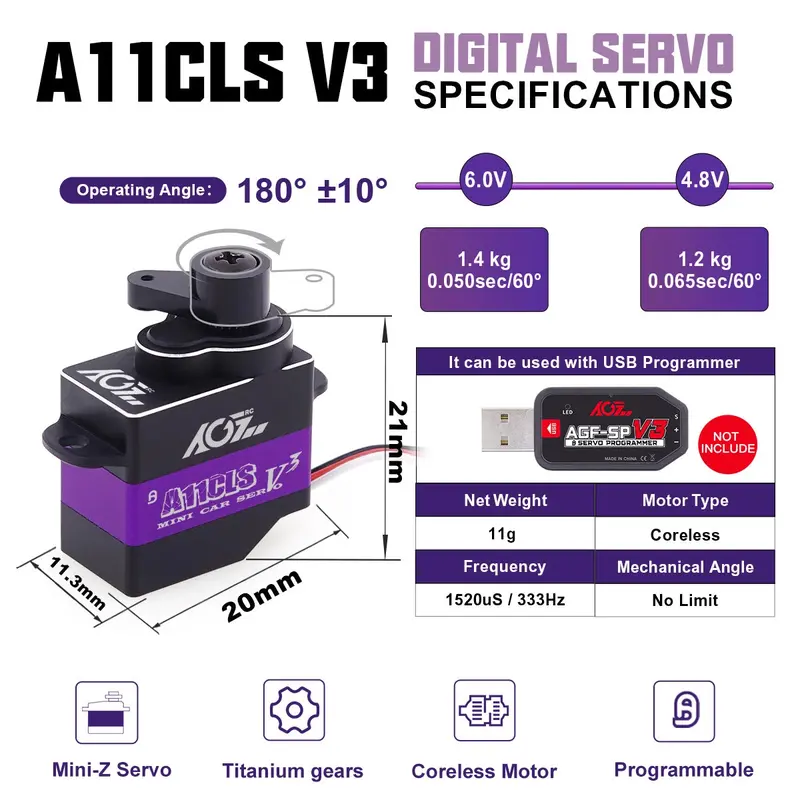

Specifications

• Motor: Coreless
• Horn Spline: 25T
• Gears: Titanium
• Operating Voltage: 4.8-6V
• Operating speed:
  • 0.065sec/60°@4.8V
  • 0.050sec/60°@6.0V
• Stall Torque:
  • 1.2 kg-cm (17 oz-in) @4.8V
  • 1.4 kg-cm (19 oz-in) @6.0V
• Size: 20 x 11.3 x 21mm (LxWxH)
• Weight: 11g

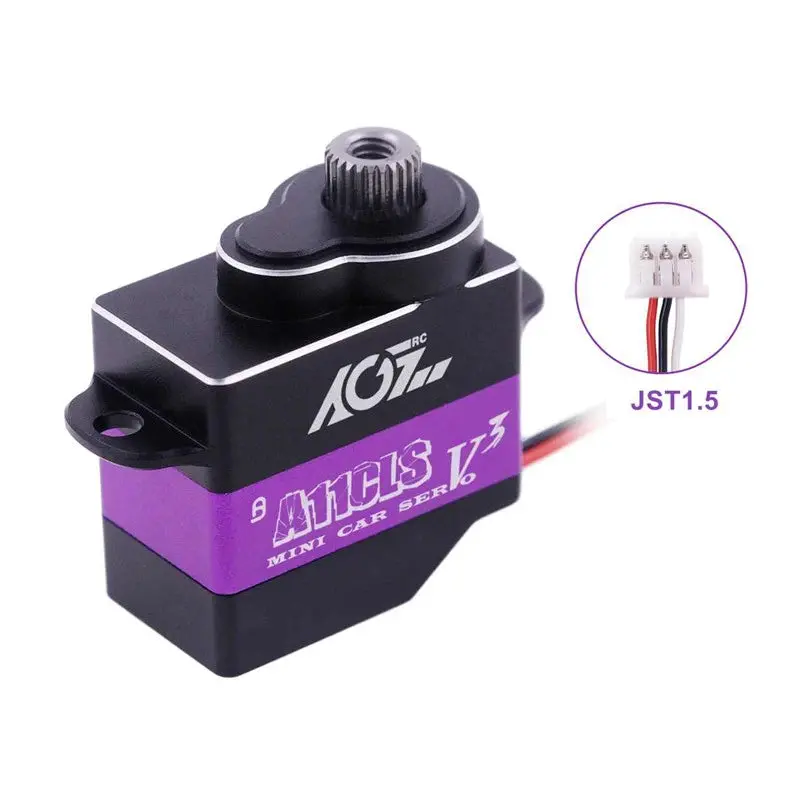

• Connector: JST 1.5 (80mm long)
