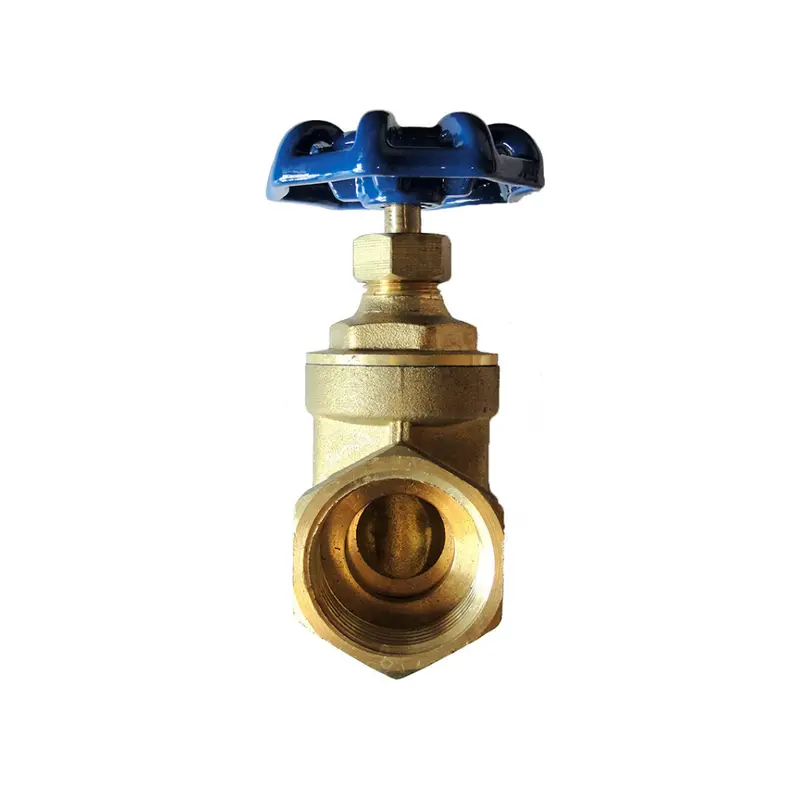

American Granby GV200-100T 1-Inch Brass Gate Valve – FPT

Description

GV200 Series Forged NON-POTABLE 1” Brass Gate Valve (Female Pipe Threads)

Features

• 1” Female Pipe Threaded Inlet and Outlet
• Constructed of heavy duty forged non potable brass.
• Die-cast body, forged bonnet are connected with a PTFE body to bonnet gasket for a leak proof seat.
• Screwed bonnet, non-rising stem, solid wedge disc and integral seats.
• Graphite stem seal packing.
• Cast iron hand wheel
• Rated at 200 PSI WOG; 125 PSI SWP (working pressure, non shock)
• Threaded ends produced to ANSI/ASME B1.20.1 (NPT) standards.
• Sweat ends produced to ANSI B16.18-1984 standards
• Imported

Manuals & Literature

• Brass Gate Valves Catalog Page
