Brilliance VB-01 Versa Beam Cap Light

Description

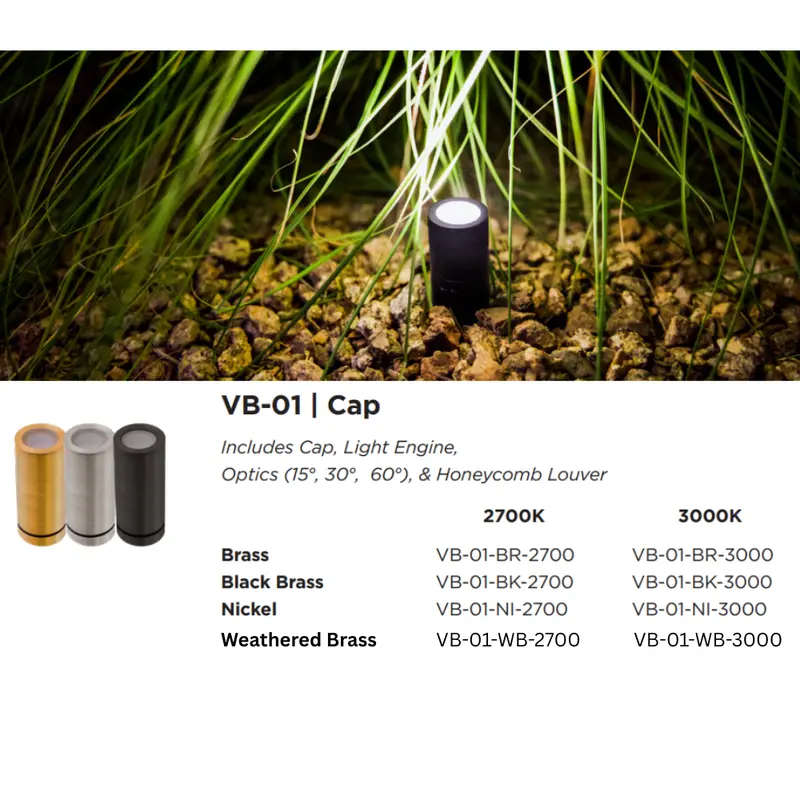

Brilliance Versa Beam Cap Up Light VB-01 (Select Finish and Integrated Lamp)

SPECIFICATIONS:

• Use: Up Lighting & Underground Up Lighting w/ ABS mounting stake
• Finish: Brass, Nickel, and Weathered or Black Brass (choose finish)
• Integrated Lamp: 2700K or 3000K (choose lamp type)
• Includes: Cap, Versa Beam Light Engine, Optics (15°, 30°, 60°), & Honeycomb Louver, 12’ Lead of 18 Gauge Direct Burial Wire
• Warranty: 5 Years

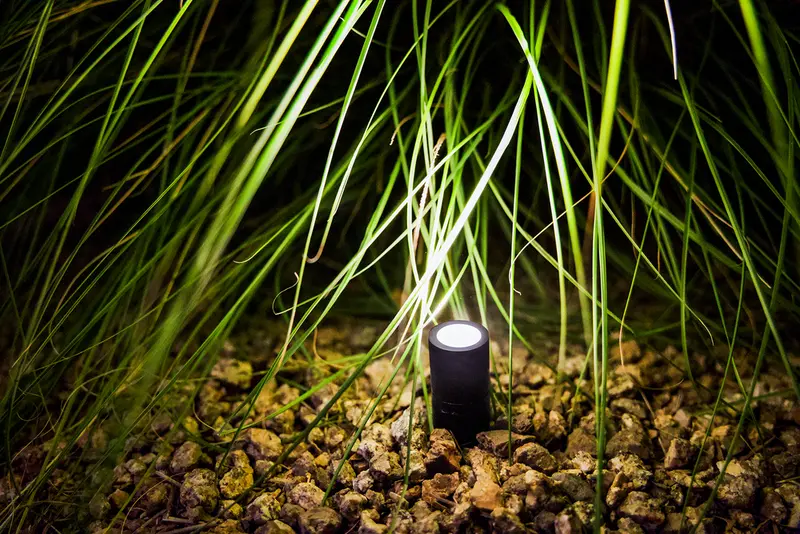

The Brilliance Versa Beam is designed to be an easy-to-install, versatile light source. The Versa Beam can be used to achieve nearly any lighting configuration in landscape lighting designs. It provides indirect light for interest, as well as safety. It is dimmable with the Brilliance Dimmer and most magnetic transformers. ETL Certified for UL 1838 and CSA C22.2 Standards.

All configuration options use the same light engine with 3W, 180 lumen output, 8-15 VAC, and 90 CRI. The brass light engine housing ensures the Versa Beam dissipates heat efficiently while withstanding harsh elements and is rated IP 65. Best of all, the Versa  Beam comes fully assembled with finish and configuration option of your choice already attached, so it is ready to use out of the box.

If used as a directional light, the 30 degree optic is pre-installed. If you prefer the 15, or 60 degrees, choose optic of your choice from the interchangeable options, or remove the optic for a wider beam angle. Then, simply install the fixture in one of its many applications.

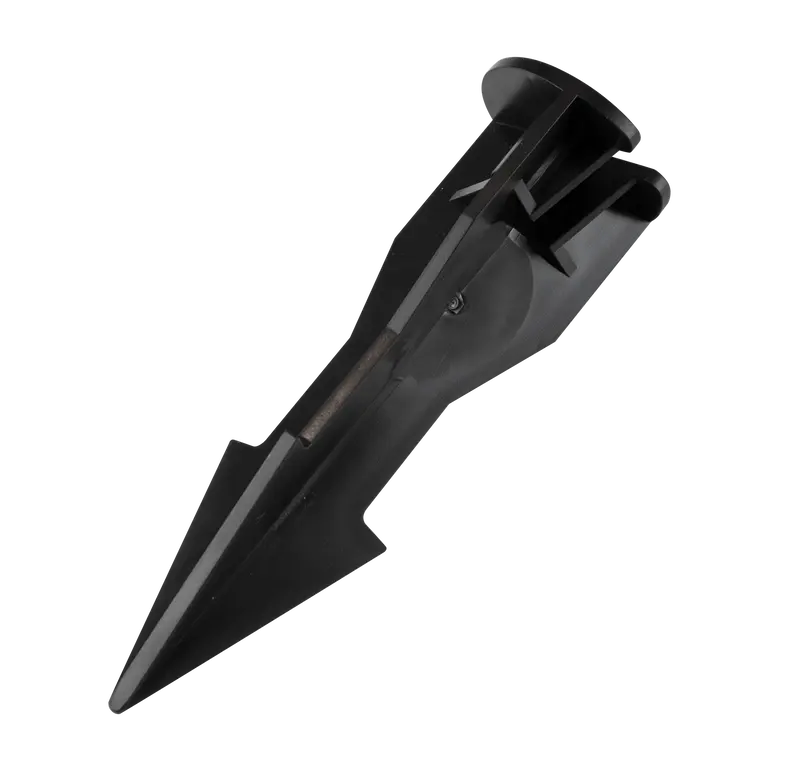

Stake sold separately for soil applications.

Light Engine Specs

• 3W, 180 Lumen Output, 8-15 VAC, and 90 CRI
• Available in Brass, Black Brass, Nickel and Weathered Brass
• Available in 2700K or 3000K
• 12’ Lead of 18 Gauge Direct Burial Wire
• Use for Areas with Elevation Changes, Hardscape, Hanging, or Overall Landscape Lighting
• Dimmable with Most Magnetic Transformers
• Measurements: L 2.25”, W 0.98”, H 1.25”
• ETL Certifi ed for UL 1838 and CSA C22.2 Standards

Product Downloads:

• Cut Sheet + Installation Instructions
• Versa Beam Flyer
• Versa Beam Booklet
