Description
Brilliance LED WAVE Strip Light – 12VAC, 2700K, 65.62′ (20 meters)
Features
- 65.62 ft reel (20 meters)
- 2700K Warm Color
- Recommended max. length per power feed is 22 feet
- Enhanced ESD (Electro-Static Discharge) protection (IEC-61000-4-2)
- Specifically to flex left and right for indoor or outdoor applications
- Use for Rounded or Curved Applications with a Radius
- Perfect for fire pits, stairs, hardscaping, and overhangs
- Accessories Available for Various Installations (Sold Separately)
Overview

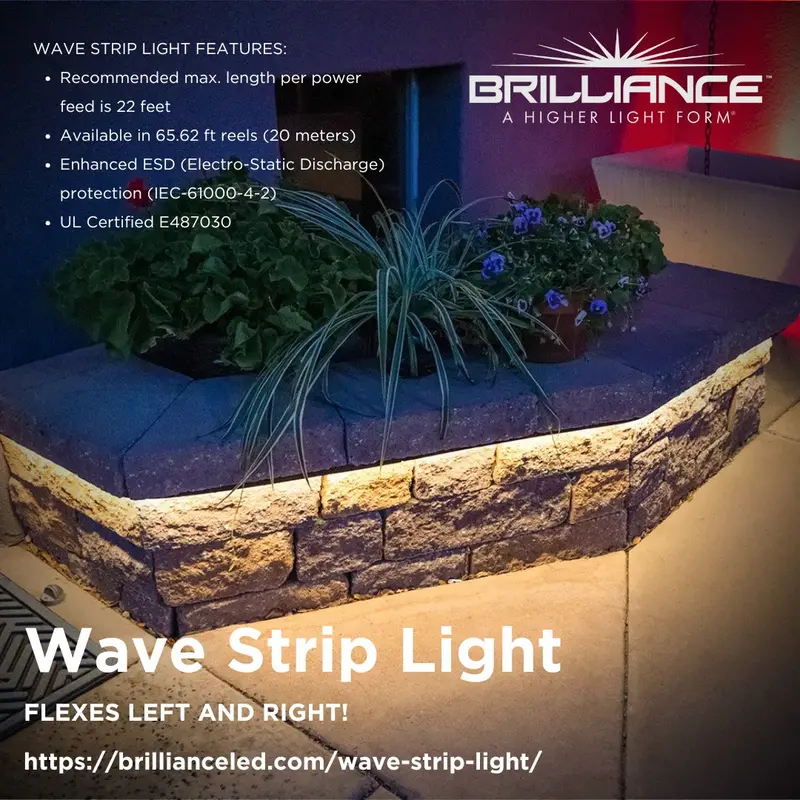

Brilliance Wave Strip Light is made specifically to flex left and right for indoor or outdoor applications with a radius and are perfect for fire pits, stairs, hardscaping, and overhangs. Just like our original strip light, the LEDs are encased in a UV protected material and can be incorporated to a new project or connected directly to an existing 8 to 16 VAC landscape lighting system. Dimmable with Brilliance Dimmer and most magnetic transformers.
Accessories (sold separately) for Brilliance Wave Strip Light include the following items: Power Feed Kit, Jumper Connector Kit, End Cap Kit, Channel Mounting Plate, Bendable Channel, and Standard Channel. See cut sheet for more information.
Reference our video below and the product and installation guide for assembly instructions and best practices.
NEC® Article 411.5 (B): Lighting systems shall be installed not less than 3m (10ft) horizontally from the nearest edge of the water, unless permitted by Article 680.
INSTALLATION REQUIREMENTS: Each Brilliance Wave Strip Light is quality control tested in the manufacturing process. Carefully follow the installation instructions to avoid mishandling, abuse, damage, misuse or negligence, as this voids the warranty. See the Product Guide below for full details.
Wave Light Specifications
- Wattage – 4.5W per Meter
- Volt Amps – 2.5 per Foot
- Lumens – 30 per Foot
- Kelvin Temperature – 2700K
- Color – Warm White
- Operating Range – 8-16 VAC/DC
- CRI – 80
- IP – 65 (Can be rained on or sprayed with water but not to be submerged)
- Lamp Life (hours) – 35,000
- Warranty (years) – 3
- Enhanced ESD (Electro-Static Discharge) protection – IEC-61000-4-2
- UL Certified – E487030
Downloads:
- Cut Sheet + Accessories
- Wave Light Installation Guide
- Wave Light Flyer
