Description

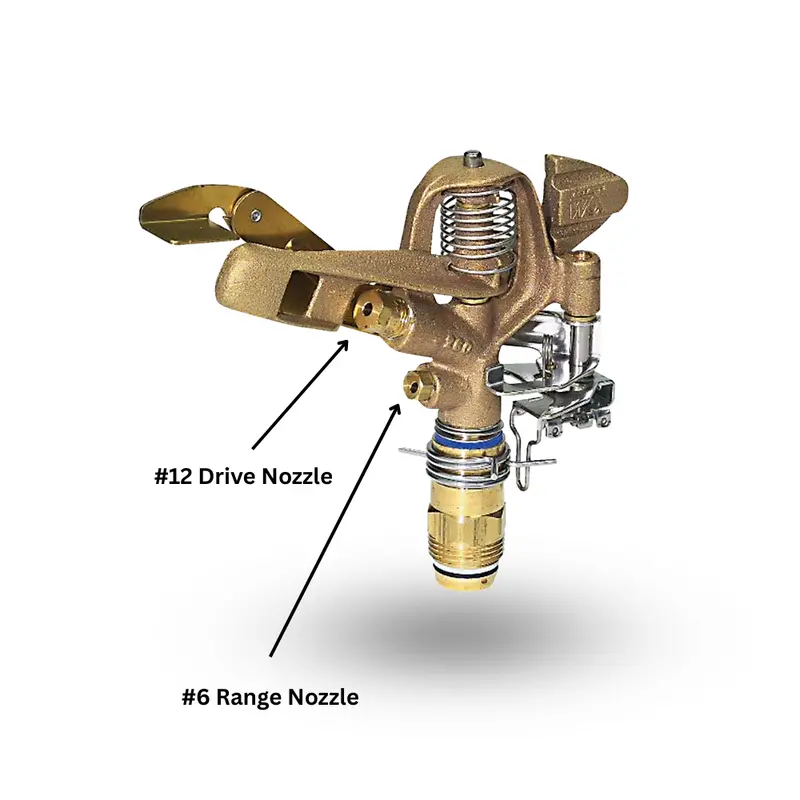

Buckner 261SDX1206 – 3/4” Full/Part Circle MPT Brass Impact – 25° trajectory – Dual #12 Drive Nozzle with #06 Filler Nozzle
Designed for use in large landscape/turf irrigation, dust control, nurseries and general purpose use.
Specifications
- 3/4″ Male NPT Inlet (National Pipe Thread)
- #12 – 5/32” Drive Nozzle Size with #06 Filler Nozzle Pre-Installed (Other nozzle sizes available but not stocked, please email [email protected] to order with different range nozzles)
- Drive Nozzle Thread: 1/4” – 18 NPT
- Filler Nozzle Thread: 3/8” – 24 UNF
Operating Ranges
- Pressure: 30 to 60 PSI
- Flow: 6.57 to 9.47 GPM
- Throw Radius: 43 to 48 FT
- Trajectory: 23°
- Rotation: 20° to 340° or Full Circle
Performance w/ Dual #12 Nozzle and #06 Filler Nozzle
Features & Benefits
- Solid brass construction
- Stainless steel springs, spindle, and fulcrum pin
- “Sure Seal®” sand load bearing assembly
- Anti-backsplash arm
- Adjustable diffuser pin
- Adjustable deflector plate
- Chemical-resistant bearing seals promote longer lifespan
- Stream straightening vane standard
- 25° angle of trajectory
- Dual or Single nozzle options (please email [email protected] for dual or other nozzle options)
Additional Information
- 261SDX Product Page
Other Throw Radius Nozzle options (41′-50′) are available for this product with dual nozzle options. If you need another nozzle besides the #12 & #06 Dual Nozzle option, then please email [email protected] for a quote and availability.
