Description
Introducing the Stage Series C1 LED Pod! Featuring custom-engineered TIR optics combined with a single high-power LED chip these pods have been designed for maximum performance and light output in our most compact versatile package yet. The SSC1 can be mounted virtually anywhere on your car truck motorcycle or UTV including spots where larger LED pods won’t fit.
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the Stage Series C1 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.

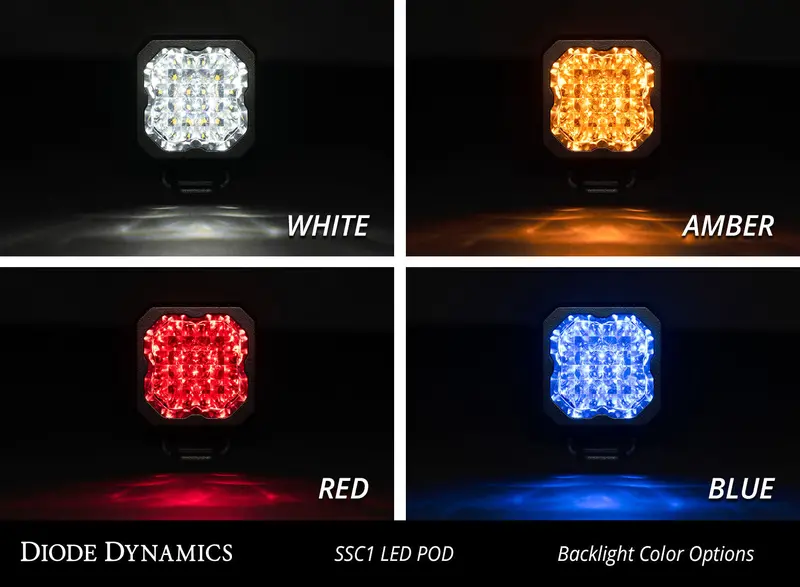

Backlight Functionality The Stage Series C1 LED Pod includes a distinctive backlight feature as well. The SSC1’s backlight fully illuminates the TIR optic, providing unique accent lighting that you won’t find in other single-LED pods on the market.
Simple connections. All Stage Series C1 LED pods feature a custom-molded DT type Deutsch-style connector on the back and come with a 6-inch pigtail with bare leads.
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F along with vibration moisture intrusion and corrosion testing. All of these tests are completed to SAE standards just like factory components. They’ve also been put to the test on-road by racers and enthusiasts alike.
Features
- Compact single-LED form factor
- High intensity LED chip
- Backlighting available in white amber red and blue
- Pin-fin heatsink design, for superior thermal dissipation
- Integrated Deutsch-style connector
- Designed torture tested and assembled in USA
Included in the box:
- Two (2) Stage Series C1 LED Pods
- Two (2) Deutsch-style wire pigtails
- Two (2) Mounting brackets and hardware
Resources
Installation Instructions
Specifications:
| beam_angle | Flood 50 Degree x50 Degree |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/diode%20ASAP.png |
| Connector | Deutsch DT Input |
| height | 4.0 |
| last_update | 2023-02-21 02:28:53 |
| last_update | 2023-06-21 15:18:38 |
| length | 9.0 |
| lumens | 2300 Lumens |
| LUX | 925 cd |
| material_l | Polycarbonate |
| material_l | Polycarbonate Lens, Aluminum Casting, Rubber Gasket |
| Series | Stage Series |
| sold_as | Pair |
| Universal | Yes |
| vehicle_type | Jeep |
| vehicle_type | Jeep|Truck/SUV|Car |
| volts | 9-16V |
| Warranty | 8 year warranty |
| waterproof_rating | IP67 Weatherproof |
| weight | 1.72 |
| width | 6.0 |
