Description
Features
- Two selectable profiles tailored for RC car racing.
- Adjustable PWM and brake frequencies allow precise regulation of motor driving and braking forces.
- Innovative softening function by HOBBYWING enables power delivery tuning for enhanced driving efficiency.
- Comprehensive protections include low-voltage cutoff, ESC and motor thermal protection, fail-safe (throttle signal loss), and reverse polarity protection.
- Data recording function supports OTA Bluetooth module to view power system running data via the HW LINK App, simplifying performance analysis.
- Firmware upgrades available through Hobbywing LCD Program Box Pro/G2 or OTA Programmer (sold separately).
Specifications
- Continuous/Peak Current: 70A/300A
- Motor Type Supported: Sensorless/Sensored Brushless Motor
- Car Applicable: 1/14 Scale Racing, 1/12 & 1/10 Light load vehicles with zero-timing (blinky) mode
- For 2S LiPo only
- BEC Output: 6V/7.4V @4a (Switch-mode)
- Size: 35.2×31.3×28.5 (LxWxH with fan)
- Weight: 66g with wires
- Program Port: Shared with Fan Port
- Cooling Fan: Powered by the BEC voltage
Contents

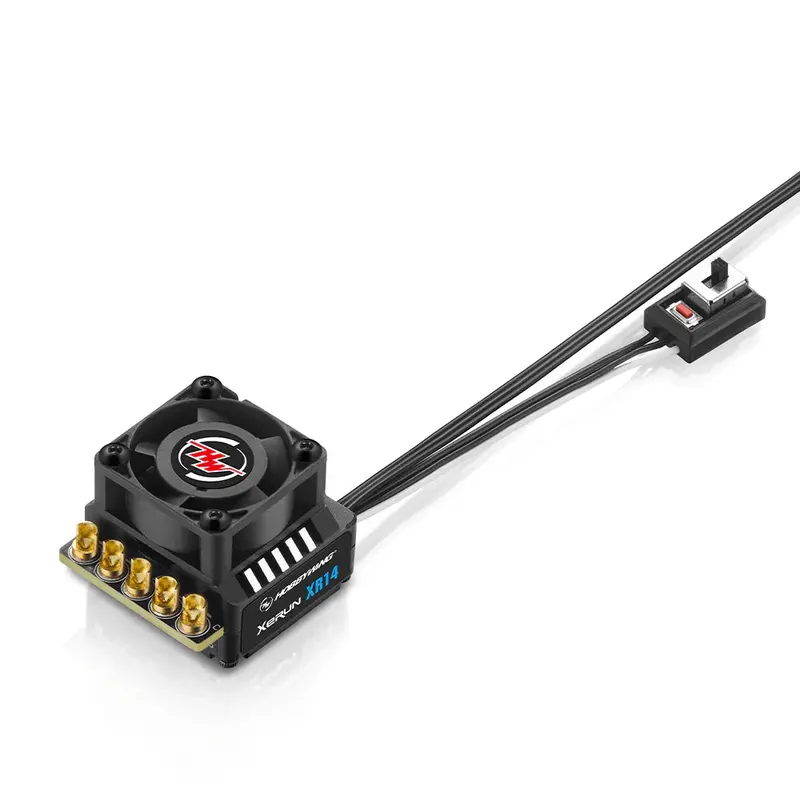

- 1x HOBBYWING XERUN XR14 ESC
- 1x Manual
- 1x Double Sided Tape, Decal
