Description

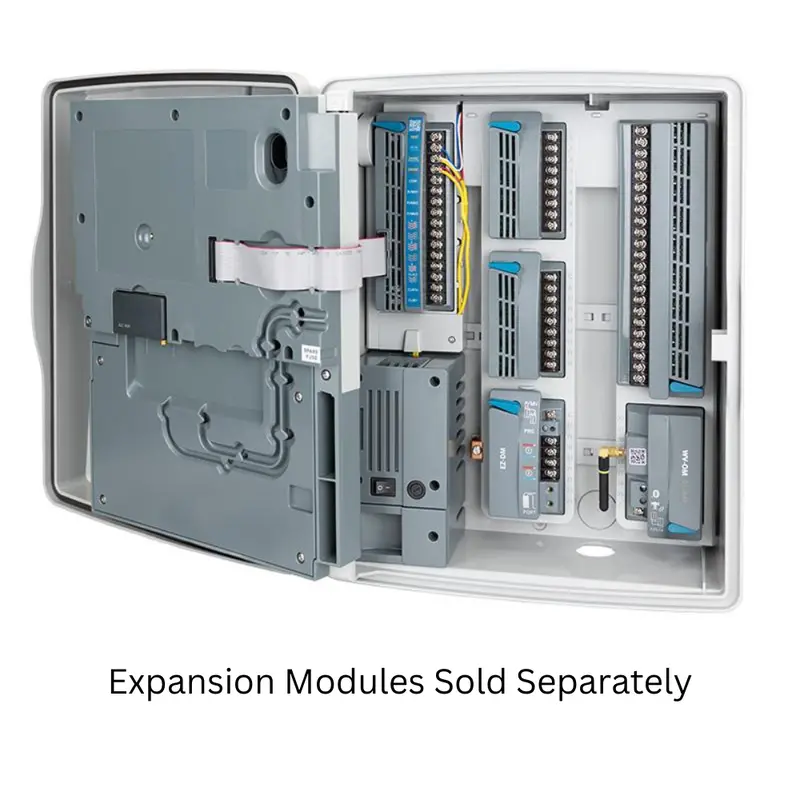

MCC Controller, 8-station base model (expandable to 108), plastic wall mount cabinet
Take charge of large landscapes with the MCC Controller. Designed for easy adaptability, it powers up to 108 stations and streamlines flow monitoring with three sensor inputs. It also gives you a clear, intuitive interface in your preferred language. Use conventional wiring, two-wire EZ Decoders, and Wireless Valve Links in any combination to build the exact system your site needs. Positioned between Hunter’s budget-friendly ICC2 and advanced ACC2 Controllers, the MCC delivers serious control, smarter workflows, and standout value for projects of any size.
FEATURES
- 8-Station base unit. Multiple levels of expansion from ICM expansion modules, EZDM decoders and WVL wireless valve link.
- Commands up to 108 stations, including conventional, two-wire, and wireless outputs
- All enhanced modules are backward-compatible with ICC2 Controllers for quick updates to older systems
- 16 automatic programs with 10 start times each offer precise plant management
- Block programming (up to 64 blocks) groups stations and consolidates large systems
- Up to 8 simultaneous solenoids
OVERVIEW
The MCC Controller delivers wireless, wide-area coverage for advanced control of up to 108 stations. Designed to take the complexity out of large-scale site management, this versatile option combines the brain and operating features of the ACC2 Controller with the reliable internal components of the economical ICC2 to deliver powerful performance without the premium price tag. Complete with advanced flow monitoring and management, the MCC also offers a menu-driven, multi-language interface that allows you to command conventional, two-wire EZ Decoders, and Wireless Valve Links — simultaneously! For convenience and interchangeability, the controller uses the same communication modules as the ACC2, enabling cloud-based control via the Centralus Irrigation Management Platform as well as connection to Hunter 360 Software and a host of other SCADA/automation applications.
Advanced Features
- 3 pump/master valve outputs
- 1 Clik and 2 Flow Sensor inputs, plus 1 additional custom sensor input (Clik, Flow, or Solar Sync)
- Solar Sync Sensor input (selectable) maximizes water savings
- Real-time flow monitoring enables leak detection and station-level response
- Flow management supports high-volume irrigation in tight watering windows at safe velocities
- Modular expansion up to 108 stations with EZ Decoders and/or Wireless Valve Links
- Preinstalled SmartPort® Wiring Harness provides instant remote control via ROAM or ROAM LR Remotes
- Conditional response programming and two-level password protection
- Easy Retrieve® Memory provides one-touch backup of all programming and device settings
- Includes language-selectable, high-visibility display
- Internet/network compatible with Wi-Fi, LAN, or Cellular connections Sold Separately
- Warranty period: 5 years
ELECTRICAL SPECIFICATIONS
- Transformer input: 120/230 VAC
- Transformer output: 24 VAC, 1.4 A
- Station output: (24 VAC): 0.56 A
- P/MV (24 VAC): 800 ma
USER-INSTALLED OPTIONS (Sold Separately)
Station Expansion
- ICM800 – 8-Station Expansion Module
- ICM2200 – 22-Station Expansion Module
EZ Decoder System
- EZ-DM – EZ Decoder Output Module for HCC, ICC2 and MCC Controllers, up to 54 stations
- EZ-1 – Single-station EZ Decoder with status LED
Wireless Valve Link
- WVOM – Wireless Valve Output Module for HCC, ICC2 and MCC Controllers
- WVL-100 – Single-station Wireless Valve Link (antenna included)
- WVL-200 – 2-station Wireless Valve Link (antenna included)
- WVL-400 – 4-station Wireless Valve Link (antenna included)
- RPT – Battery-operated Wireless Solar Repeater for WVL range extension (1 per system, max)
Centralus Communication Modules
- A2C-WiFi – Wi-Fi Communication Module for Centralus Software
- A2C-LAN – (Ethernet) Communication Module for Centralus Software
Dimensions
- Height: 17.7″
- Width: 14.4″
- Depth: 6.4″
Downloads
- MCC Spec Sheet
- Quick Start Programming Guide
- MCC Brochure
- MCC Cut Sheet
- MCC Support
