Hunter PCZ-101-40 1-Inch Drip Zone Assembly (0.5–15 GPM)

Description

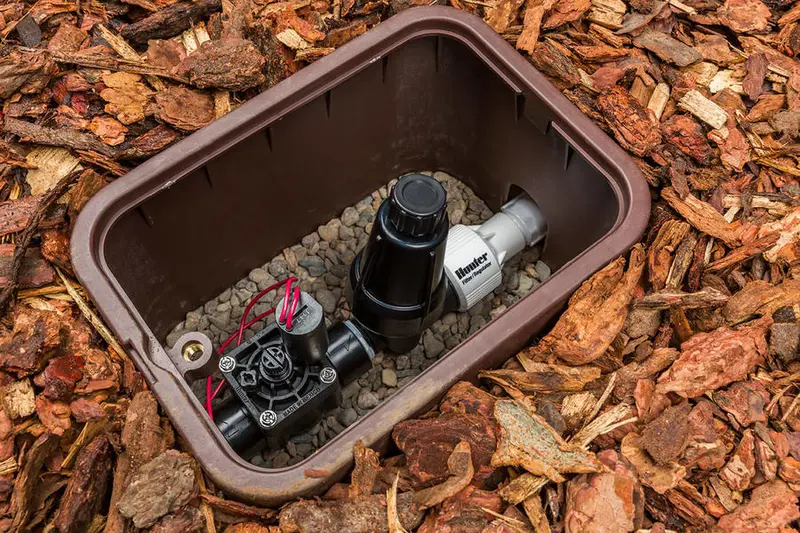

Hunter PCZ-101-40 Drip Control Zone Kit w/ 1″ NPT PGV globe valve w/ 3/4″ HFR-100-075 (Flow: 0.5 to 15 GPM)

These pre-assembled kits bring together the popular PGV valves with both a filter and a pressure regulator, providing you with a complete control zone. The PGV valve features high-grade material construction, including a bonnet made of durable PVC. Rounding out the kits elements are a stainless steel filter screen, flush cap and pressure regulator to maintain a consistent 40 PSI.

Features

• Pressure regulation: 40 PSI
• Flow: 0.5 to 15 GPM (30 to 900 GPH)
• Operating pressure: 20 to 120 PSI
• Operating temperature: up to 120º F
• 150 mesh stainless steel screen
• 1″ inlet and 3/4” outlet

Key Benefits

• Factory-assembled and water-tested
• Highest quality components (stainless steel filter screen, standard flush cap, top-of-the-line regulator)
• Wide flow range to cover most micro irrigation applications.
• Warranty: 2 years.

Solenoid Operating Specifications

Heavy-duty solenoid 24 VAC

• 350 mA inrush current, 190 mA holding current, 60 cycles
• 370 mA inrush current, 210 mA holding current, 50 cycles

Downloads

• PCZ Spec Sheet
• PCZ Brochure
• Drip Zone Control Key Benefits
• Drip Zone Control Kit Support
