Description
When a system requires the use of a booster pump or pulls water directly from a creek or pond, its imperative to include a relay that can be counted on to activate the pump each and every time. Hunters Pump Start Relay (PSR) has been created to provide that reliability-as well as a lockable NEMA rated enclosure-at an economical price. The PSR is fully compatible with all standard 24VAC controllers. Its also designed with user-friendliness in mind. Flying wire leads allow for effortless 24V connections. Plus a wide array of “knockouts” make wiring easy and accommodating to most mounting specifications.
Operating Specifications
- Double pole/single throw pump start relay for 120 VAC pumps up to 2 hp or 230 VAC pumps up to 3 hp.
- Recommended installation: minimum 15′ from irrigation controller
- Primary AC power input: 120/230 VAC
- Secondary AC power output: 24 VAC, 1.6 A
- Relay rating: Double-pole, double-throw solid state (10 A)
- Approvals: IP44 (outdoor), UL, cUL, FCC, CE, RCM, ISED
- Warranty period: 2 years
Features
- NEMA 3R rated locking plastic enclosure rated for outdoor use, weather resistance and security
- 24 VAC flying leads make connection to the controller quick and easy.
- Suitable for conventional wiring or two-wire decoder activation, allows flexible installation options
Downloads
- Installation Sheet
- Spec Sheet
- Pump Start Relay Support

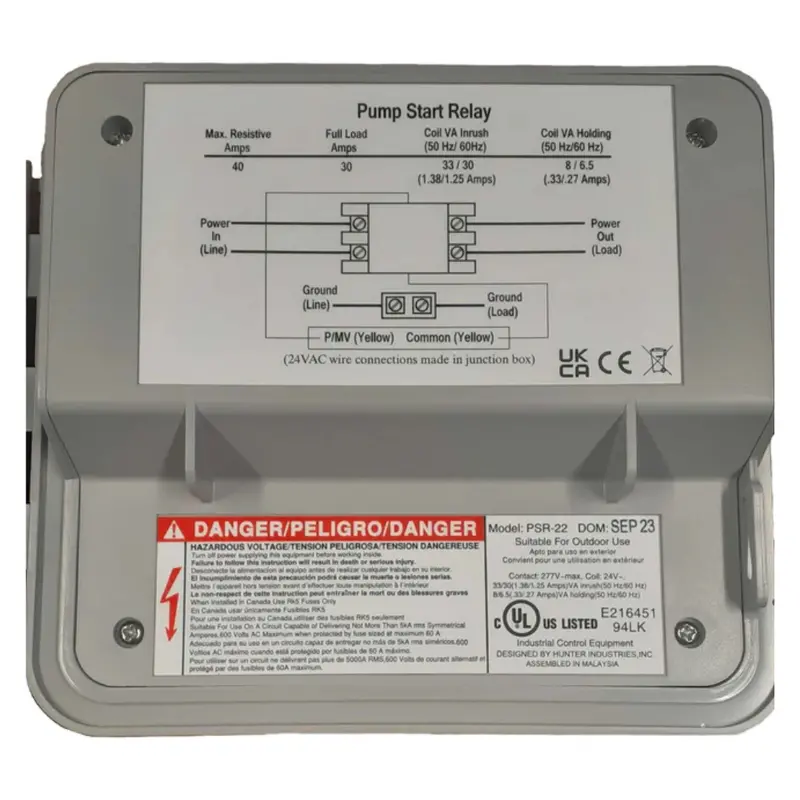

Pump Start Relay Electrical Specifications
| HP at 120 VAC | 2* |
| HP at 230 VAC | 3* |
| Max Full Load Amps | 30 |
| Max Resistive Amps | 40 |
| Coil VA Inrush (amps) | 30 (1.25) |
| Coil VA Holding (amps) | 6.5 (0.27) |
Note:
* Approximate power
** 3 phase power at 230 VAC is not commonly available in some international markets. Check local electrical codes for compatibility.
