Description
Irritrol 2400T 1 in. FPT Threaded Jar-Top Valve
The Irritrol® 2400 Series globe valves are popular with users because of the convenience of their threaded bonnets, the reliability of their double-beaded diaphragm and the durability of their heavy-duty, corrosion and UV-resistant PVC construction. Fast and easy to install and service, these 1-inch residential plastic valves offer an encapsulated solenoid, internal/external bleed, flow control and are available in multiple configurations.
Features
- Size: 1” FPT (Female Pipe Thread)

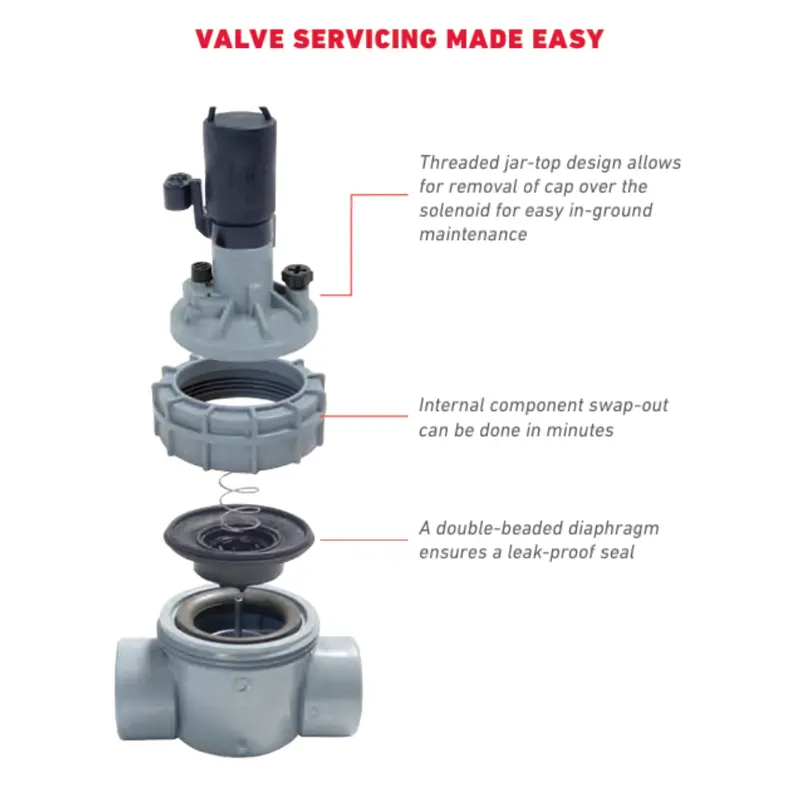

- Threaded Bonnet Design allows easy servicing without removal from the system
- Buna-N Valve Seat Seal Ensures a leak proof seal
- Rugged, Double-Beaded Diaphragm ensures a leak proof seal
- Internal and External Bleed (Flush Mode) allows for manual operation
- Encapsulated injection-molded solenoid with a captive hex plunger
- Heavy-duty, corrosion- and UV-resistant PVC and stainless steel construction
- Floating bleed tube allows thermal expansion without affecting performance
- Five-year warranty
Optional Accessories (Sold Separately)
- DCL – DC Latching Solenoid
Operating Specifications
- Flow rate: 0.25 to 30 GPM
- Recommended pressure range: 10 to 150 PSI
Electrical Specifications
- Solenoid: 24 V ac
- Inrush volt-amp: 24 V ac-9.6 VA
- Inrush current: .4 amp
- Holding volt-amp: 24 V ac-4.8 VA
- Holding current: .2 amp
Dimensions
- H: 5 1/8”
- W: 3”
- L: 4”
Downloads
- 2400 Installation Guide
- 2400 Brochure
