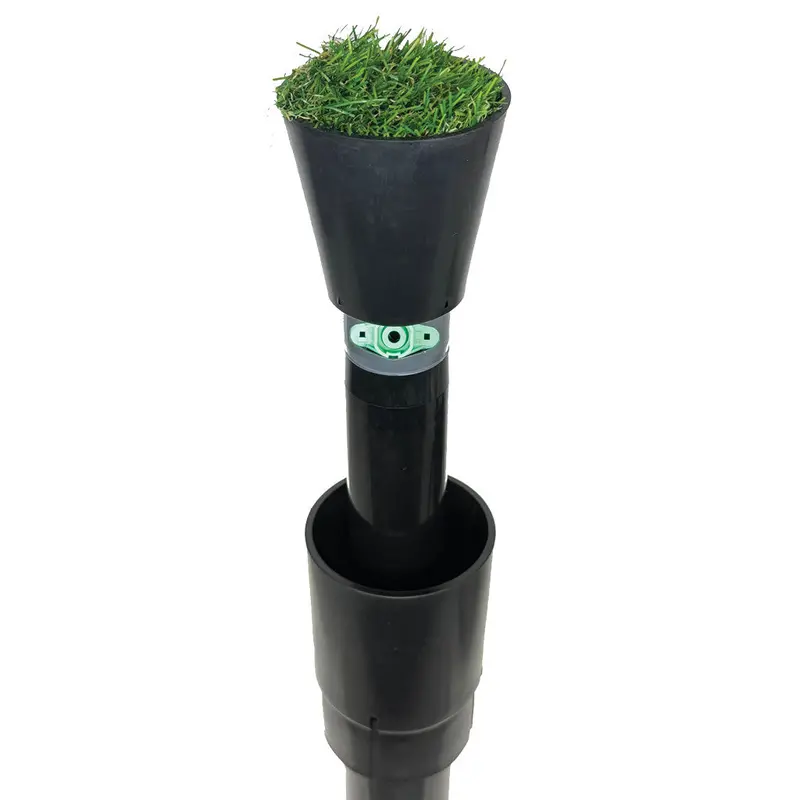

K-Rain 14053-TC-6 1-Inch ProSport High-Speed Turf Cup Rotor

Description

The ProSport® High Speed Turf Cup Rotor is specifically for sports turf and can cover an area of 43′ – 77′ at a nozzle pressure of 40 to 90 PSI with a discharge rate of 5.1 to 32.5 GPM.

Achieve a clean, professional finish on your sports field or high-traffic turf area with the ProSport Turf Cup rotor sprinkler. This accessory allows natural grass to grow directly over the rotor head, maintaining a uniform turf surface while protecting players and equipment. Perfect for athletic fields, golf courses, and high-visibility landscapes where both performance and aesthetics matter.

This model has a 6” pop-up riser and is the high speed version, ideal for quick wet downs and dust control.

Includes:

• #10 Green Nozzle pre-installed (Includes #5, #15, #20, #25, #30 nozzle per rotor)
• 1 Rotor Key included in purchase of 6+ Rotors. 2 keys and 2 nozzle changer clips per case of 12.
• If you purchase less than 6 rotors then a rotor key will need to be purchased separately. Rotor key is part P1000902.

Turf Cup Features

• Pre-Installed: Adhered to the ProSport Rotor for secure installation and optimal performance.
• Player-Safe Design: Minimizes trip hazards and surface interruptions—ideal for sports fields and recreational areas.
• Natural Look: Supports healthy grass growth above the rotor for a completely natural appearance.
• Durable Construction: Built to withstand foot traffic, weather, and maintenance cycles.

SPECIFICATIONS:

• Inlet: 1″ (2,5 cm ) Threaded NPT
• Arc Adjustment Range: 40° to Continuous 360°
• Flow Range: 5.1 – 32.5 GPM (19,3 a 123 LPM)
• Pressure Rating: 40 – 90 PSI (2,8 a 6,2 bar)
• Precipitation Rate: .48 – 1.35 in/hr (12,2 – 34,3 mm/hr) (Depending on Spacing & Nozzle Used)
• Recommended Spacing: 40′ – 65′ (12,2 a 19,8 m)
• Radius: 45′ – 77′ (13 a 23 m)
• Nozzle Trajectory: 26°
• Riser Height: 6″

FEATURES AND BENEFITS:

• Revolutionary Patented Top Arc Set – Simplified arc set allows for wet or dry adjustment in seconds.
• Triple Nozzle Configuration– Ensures even distribution of water.
• 2N1 Adjustable or Continuous Rotation– Provides a full range of adjustment from 40° to a continuous full circle.
• Top Arc Set Degree Markings– Clearly indicates the current watering pattern and simplifies arc set adjustment.
• Arc Memory Clutch– Prevents internal gear damage and returns rotor to its prior setting automatically if nozzle turret is forced past stop.
• Time Proven Patented Reversing Mechanism– Assures continuous reverse and return-over a 35 year history.
• Heavy Duty Rubber Cover and Mud Guard– Protects against physical injury and reduces liability, allows sprinkler to be installed below grade.
• Factory Installed Check Valve– Prevents low head drainage.

Manuals & Literature

• Product Brochure
• Turf Cup Setting Instructions
