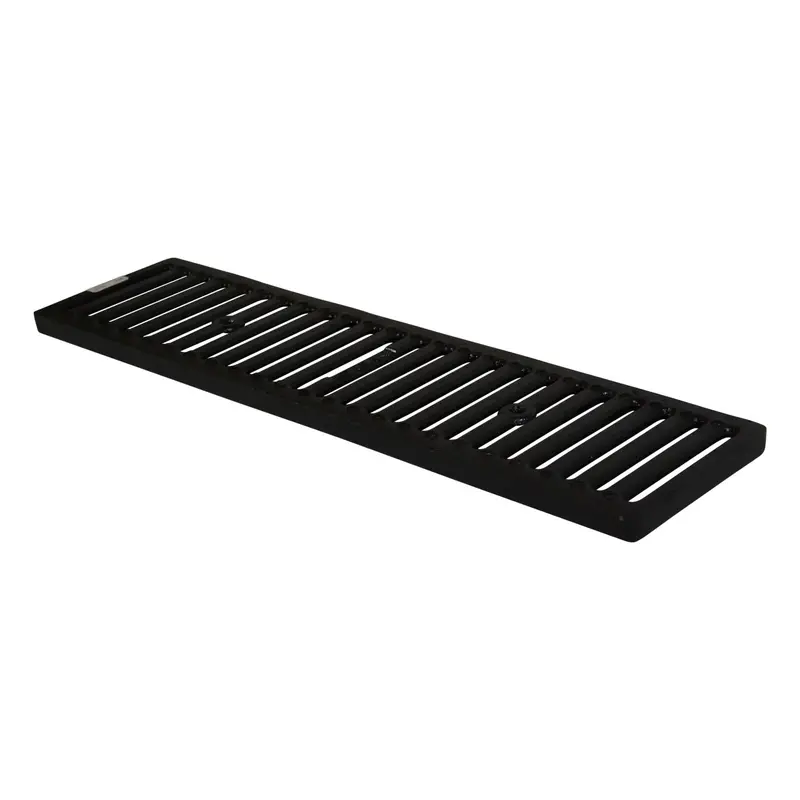

NDS DS-231 Dura-Slope 2-Foot Cast Iron Channel Drain Grate

Description

2′ Cast Iron Dura-Slope Channel Grate

• Use with Dura Slope Channel Drains and Dura Slope Catch Basins #DS-340
• Requires 2 Screws Per Grate #629 (Not Included – If purchasing with a Dura-Slope drain or catch basin, then the screws will come preinstalled with the Dura-Slope.)
• (2) Grates required per Dura Slope Channel Drain.
• (1) Grate required per Dura Slope Catch Basin
• Requires use of DS-200H for Class D Load Rating

Specifications

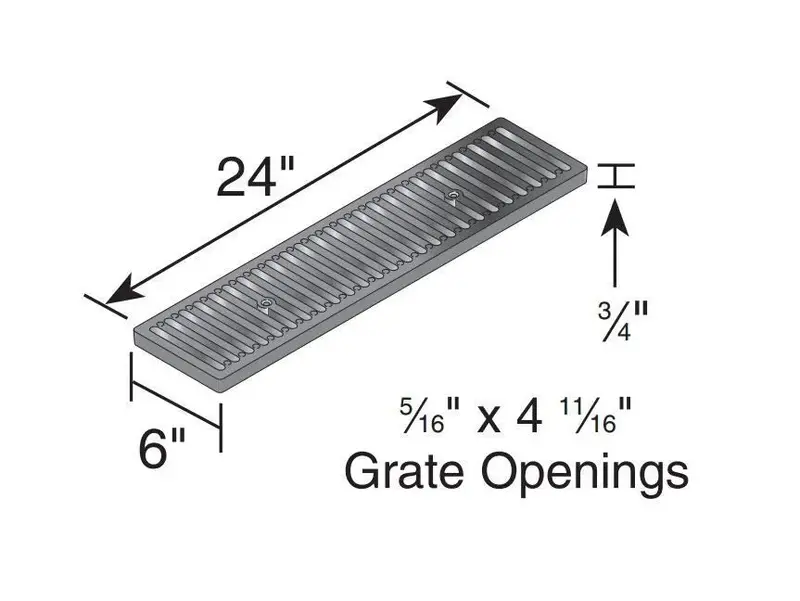

Product type: GratesMaterial: Cast IronColor: BlackLength: 24 in.Width: 6 in.Height: 0.75 in.Weight: 15.90 lbADA: YesLoad Rating: Class D

• Loads of 326-575 psi.
• Recommended for heavy-duty hard tire forklifts at speeds less than 20 m.p.h.      H-20 rated.
• Has to be installed with DS-200H to get this load rating.

Style: FlatCapacity: 64 GPM per foot with 1/2” of head.Grate Opening: 5/16” x 4-11/16”

Downloads

• 2 Ft. Cast Iron Dura Slope Grate Spec Sheet
