NDS Flo-Well System Replacement Bottom Panel for Drainage Installations

Description

Inserted on the bottom of the assembled Flo-Well Dry Well Side Panels, the bottom panel prevents soil erosion under the dry well and provides a solid, stable base when adding a pump into the tank to send collected water to another location. No gravel is needed beneath the Flo-Well Dry Well Tank when using the bottom panel. Works in all soil conditions. The Flo-Well Dry Well System is used to detain and slowly release collected stormwater runoff. With the Bottom Panel, it can also work as a reservoir. Flo-Well Dry Wells can be stacked for additional capacity. Secure a bottom panel on the lowest Flo-Well tank to prevent erosion of the soil beneath the entire system.

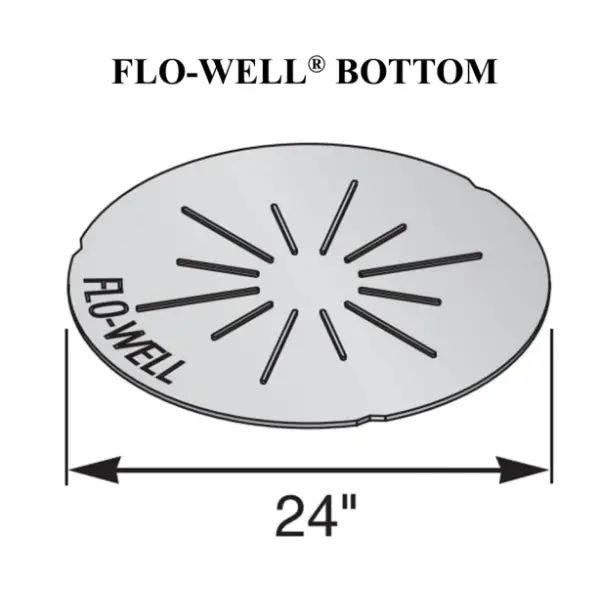

• Structural Foam Polyolefin round Flo-Well® bottom with UV inhibitors. 24″ diameter with six 1 1/2″ leaching ports. 4.5″ center knockout for strut coupling.
• Bottom panel works with NDS Flo-Well Dry Well Tank and Cover Kit as part of a larger drainage solution – FWAS24WH
• When assembled with the Flo-Well Dry Well Kit, the system is ideal for both residential and commercial locations including yards, playgrounds, golf courses, and wash-down areas and an alternative to raingardens and bioswales
• Attach Bottom Panel underneath assembled Flo-Well Dry Well Side Panels
• Manufactured from 100% recycled plastic
• Made in the USA
• The durable bottom panel turns the Flo-Well Dry Well into a reservoir for pond and waterfall recirculation pumps
• The bottom panel works with the Flo-Well Dry Well Kit (FWAS24WH Kit includes three side panels and top cover)
• Easy to Install; insert onto bottom of Flo-Well Tank (assembled side panels and cover) and place in prepared hole
• Comes with 1 bottom panel for the Flo-Well Stormwater Dry Well System

 Downloads

• Flo-Well Bottom Spec Sheet
• Installation Instructions
• Flow-Well Brochure
