Description

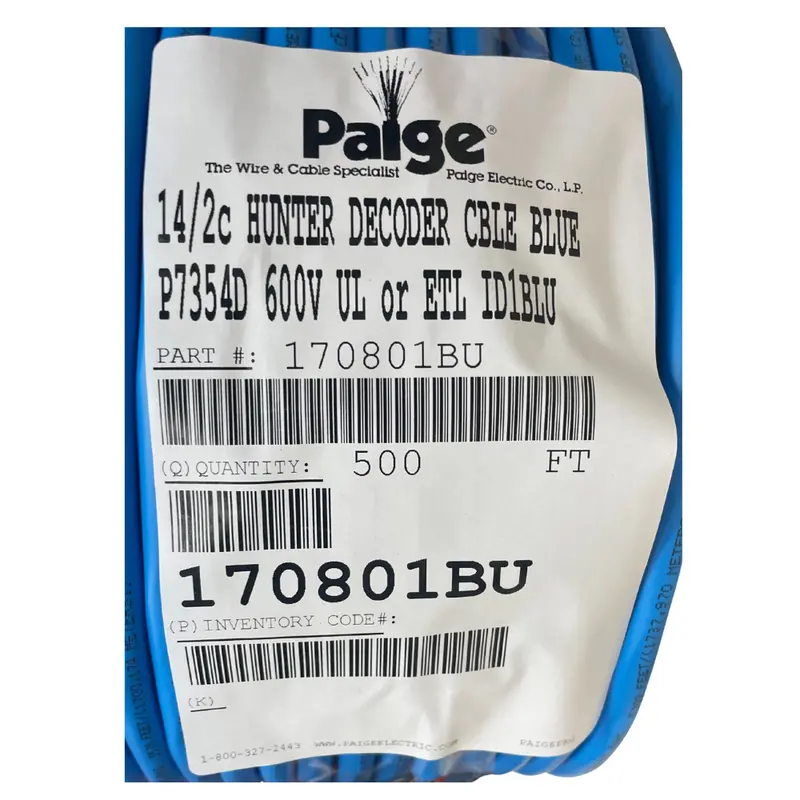

P7354D | 14/2 PE-45 Twisted Direct Burial Irrigation Decoder Control Cable for Hunter & Other 2-Wire Systems – 500′ Spool | 070801BU
Hunter Blue Outer Jacket with 2 Solid Copper Red and Blue Twisted Inner Conductors
Specifications
- 500′ Spool
- Size: 14 AWG, 2 Conductor
- Insulation: Blue Outer Jacket with Red and Blue Inner Conductors
- Scope: This specification covers jacketed cables containing two listed Golf Course Sprinkler wires, single conductor, suitable for direct burial, for operation up to 600 volts, and temperatures up to 60°C.
- Inner Conductors: Soft drawn bare copper meeting the requirements of ASTM specification B-3 or B-8. Insulation shall be low density high molecular weight polyethylene and a thickness of 0.045”, per Paige Electric specification P7079D. The two conductors (blue and red) shall be twisted with a minimum lay of 4”
- Rip Cord: A rip cord shall be placed directly below the outer jacket.
- Overall Jacket: High density polyethylene with a thickness of 0.035”. Blue color outer jacket. The jacket shall be sufficiently round, and loose, to facilitate its removal when being stripped.
- Surface Print:
- Inner Conductors – “Paige Electric P7079D 14 AWG PE Listing file Number 600V Sprinkler System Direct Burial”
- Outer Jacket – “Paige Electric, P7354D, 14 AWG PE 600V Sprinkler System Wire Direct Burial Only for Hunter Decoder Systems RoHS”
- Wire splices are the weak link of any electrical circuit. It is especially important to make proper joints in irrigation systems because the joints are exposed to wet and damp environments that can cause corrosion of the copper conductor, and premature failure. Paige Electric recommends the strict use of Model DBR/Y-6.
Downloads
- Spec Sheet
