Description

ProLine Power Wagon Light Kit

MyTrickRC’s Pro-Line Power Wagon Light Kit is the perfect complement to your competition rig. This Kit features a sleek and rugged, light weight Grill with integrated High Intensity Headlights. The Pro-Line Power Wagon Light Kit also comes with two pairs of Attack Rock Light Pods and the compact HB-2 Lighting Controller. The Pro-Line Power Wagon Light Kit powers off your vehicle’s Receiver and is Plug and Play.

Features

• Simple, hassle-free operation
• Easy Assembly and Installation
• In-Line Quick Disconnects between Body and Chassis

What’s Included

• Custom Scale Grill with Built-In:
• 1-Pair 27mm LED Strip Lights
• 1-Pair Clear Lenses
• 2-Pair Attack Spot Lights for Rock Lights
• 1-HB-2 Lighting Controller
• Mounting Screws and Zip Ties

Scale Grill Installation

Step one is to cut an opening in your body for slipping in the Grill. The Grill has a slot on the top and sides for sliding into the body.

Note: Cut right on the edge of where the body dips down into the Grill area. Use the Grill as a template and Be Careful not to cut away too much! The Grill is slotted so that it can slide into the cut body. Before cutting, use the Grill as a guide to confirm where to cut.

<!–

Note: The next couple steps are no longer necessary since the Grill now comes pre-assembled with the Strip Lights and Lenses already installed.

Next you will take your Grill and insert the 27mm strip LEDs from the rear.

NOTE: Take your time and insert the LED’s with care.

Once installed from the rear of the Grill, you can cover the LED strips with the included clear Lenses.

NOTE: Insert lenses with care being sure to note any flash or fitment issues with the 3D print. The lenses should fit snug, NOT TIGHT.

–>

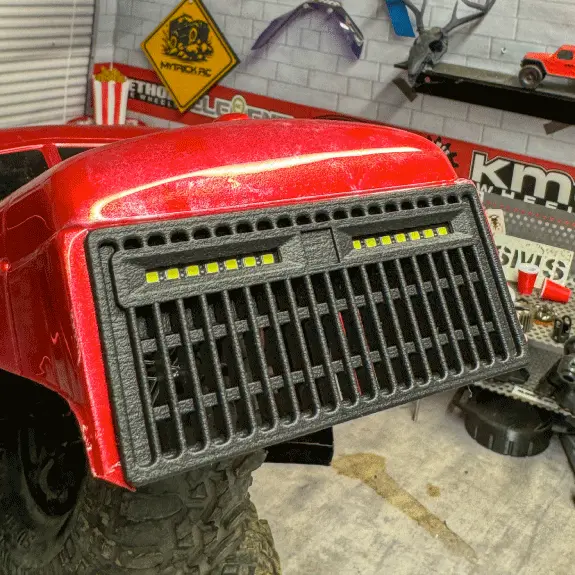

You can now slide your Grill/Light assembly into your vehicle body. We recommend securing it with a silicone-based adhesive such as Zap Goo, E-6000, Shoe Goo or equivalent.

• Scale Grill
• Super Bright Strip Lights
• 2pair Rock Light Pods
• HB-2 Controller
• Plug and Play
