*Product has been discontinued. Please click here for the replacement Impact Sprinkler we have available with similar specs. – Buckner – 360SAX18PG

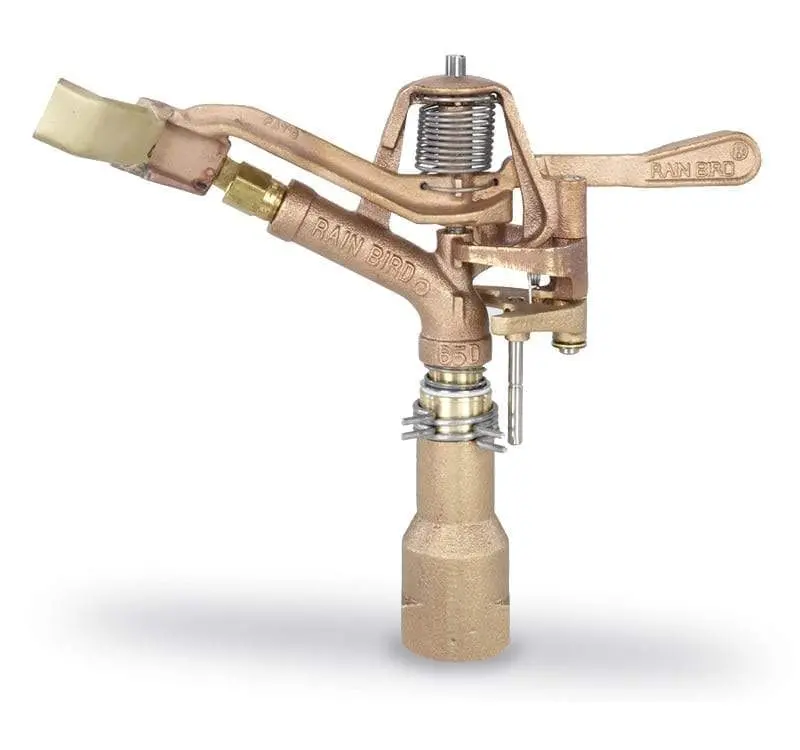

1″ (25 mm) Full or Part Circle, Brass Impact Sprinkler
Has a wide range of applications. Added versatility comes from an adjustable trip slip-pin that converts the sprinkler to full circle applications. The PJ precision jet arm eliminates side splash.
Features
- 1″ (25mm) Female NPT bearing inlet bearing
- Full or part circle operation
- “Precision jet” (PJ) arm
- Stainless steel springs and fulcrum pin
- Chemically resistant washers
- ADJ-4 Nozzles include integral break-in pin
- Full or Part Circle operation
- Back by five-year Customer Satisfaction Policy
- For use with Rain Bird ADJN-4 Straight Bore Adjustable Nozzle
Specs
- Bearing: 1″ Female NPT, Brass
- Trajectory Angle: 27 degrees
- Operating Range: 50-80 psi (3.5-5.5 bar)
- Flow Rate: 12.9-16.5 gpm (2.93-3.75 m3/h)
- Radius: 57-65 ft. (17.4-19.8 m)
- Nozzle Port: 3/8″ Female NPT
Downloads
Performance Chart
