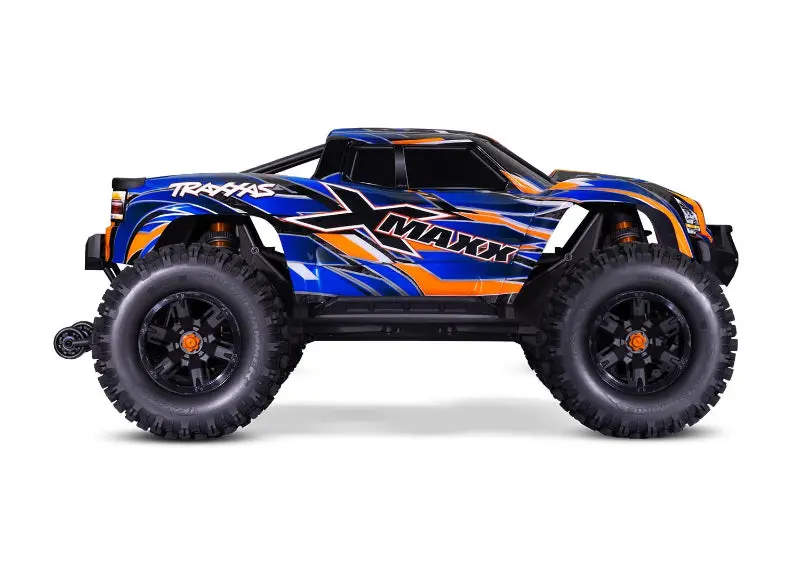

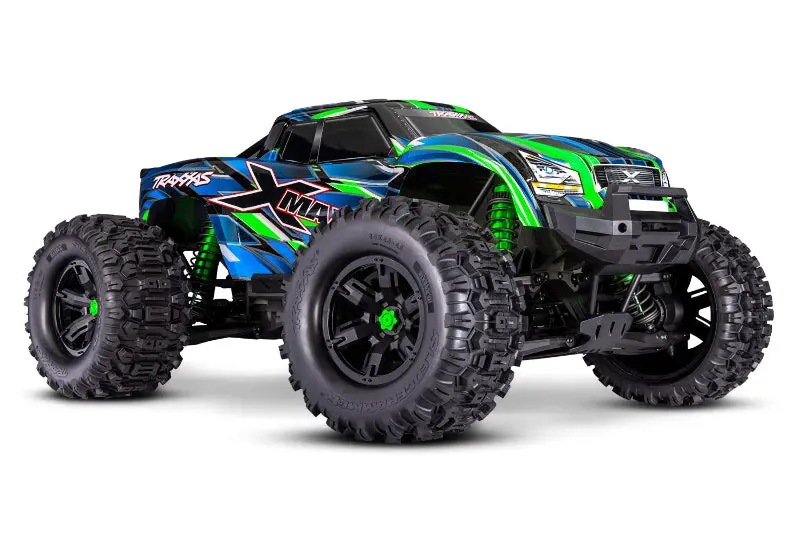

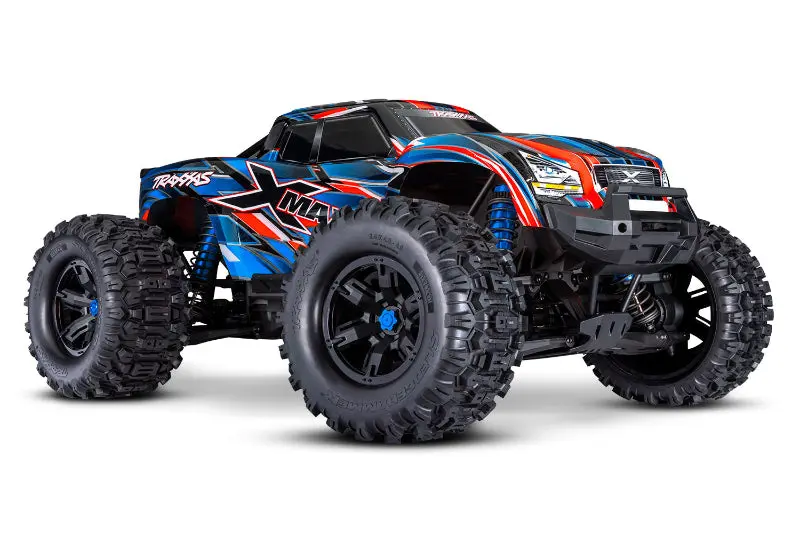

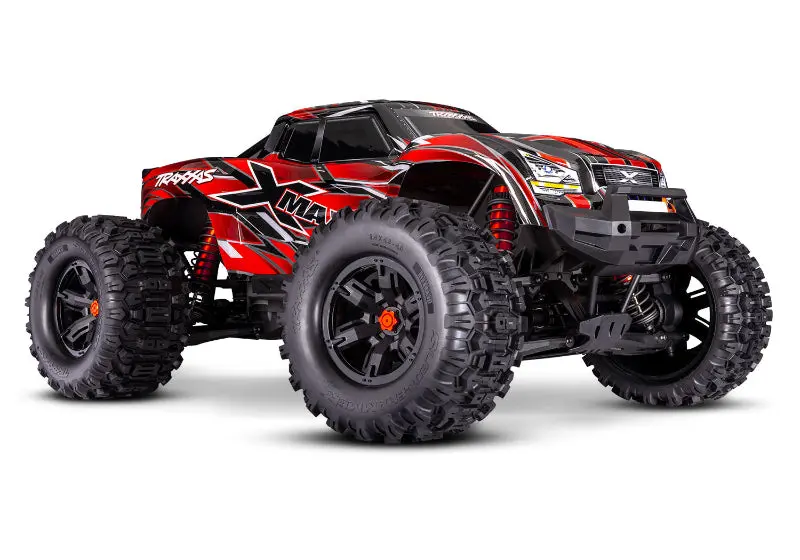

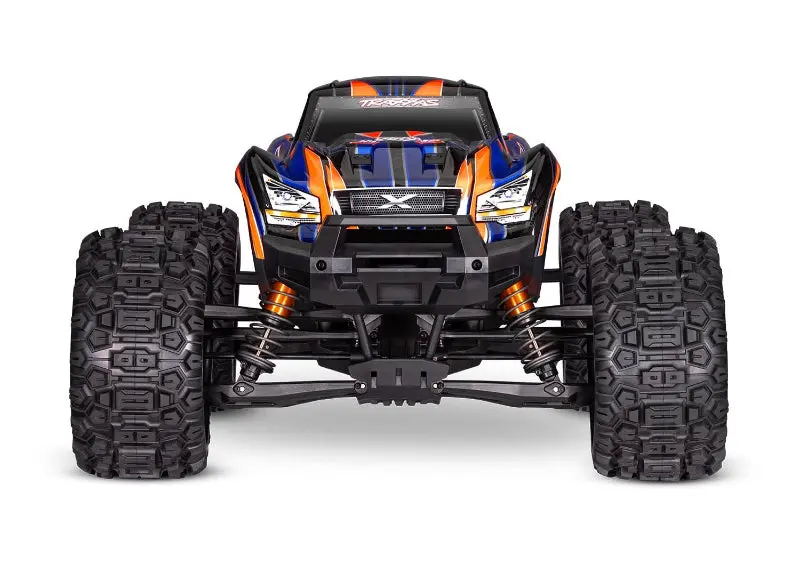

Traxxas X-Maxx 8S Heavy-Duty Belt-Driven Monster Truck

Description

Unleash the beast with the Traxxas X-Maxx 8S! Massive power, 4X4 durability, and extreme bashing capability make it the ultimate monster truck for serious RC fun!

Required To Run

• LiPo Batteries: IMPORTANT: X-Maxx requires the use of LiPo batteries equipped with Traxxas High Current Connectors. Traxxas 4-Cell, 6700 mAh Power Cell LiPo batteries with iD are recommended for optimal performance. (part 2890X).
• Compatible Lipo Charger
• Four AA alkaline batteries for the transmitter.

Features

• Extreme Velineon VXL-8s ESC with Big Block 1200XL Brushless Motor
• TQi 2.4 GHz High-Output Radio System with Traxxas Stability Management
• Ultra-Rigid Modular Chassis with Protective Skid Plates
• Huge 8″ Belted Sledgehammer Tires with Foam Inserts
• Tough, Reinforced Clipless Body with Internal Support Cage

Specifications

• Length: 30.67 inches (779 mm)
• Front Track: 21.3 inches (540 mm)
• Rear Track: 21.3 inches (540 mm)
• Ground Clearance: 4 inches (102 mm)
• Weight: 19.1 pounds (8.66 kg)
• Height (ride): 13.79 inches (350 mm)
• Wheelbase: 18.92 inches (480 mm)
• Shock Length: 7.4 inches (187 mm)
• Tires (pre-glued): 8.0×4.0 inches (203 mm)
• Wheels: 4.3×5.7 inches (110×145 mm)
• Wheel Hex Size: 24 mm splined hex
• Speed Control: Velineon® VXL-8s
• Motor (electric): Velineon 1200XL
• Transmission: Single-speed
• Overall Drive Ratio: 8.11 (stock, out-of-box)
• Differential Type: Sealed, hardened steel bevel, limited slip
• Gear Pitch: 1.0 pitch
• Chassis Structure/Material: Composite Nylon tub
• Brake Type: Electronic
• Drive System: Shaft-driven 4WD
• Steering: Bellcrank
• Radio System: TQi™ 2.4 GHz Transmitter with TSM® receiver
• Servo: Torque: 365 oz/in Speed: 0.17 sec/ 60° (6.0 V)
• Top Speed: 50+ mph with two 4s LiPo batteries and optional gearing
• Skill Level: 6
• Battery Tray: 197 mm x 51.5 mm x 44 mm

Motor Specifications

• Motor Name: Velineon® 1200XL
• Motor Type: 1275 kV sensorless brushless
• Motor Weight: 23.44 ounces (665 g)
• Motor Length: 4.32 inches (110 mm)
• Motor Diameter: 1.88 inches (48 mm)
• Motor Shaft Size: 5 mm
• Motor Connector Type: 6.5 mm bullet connectors

ESC Specifications

• ESC Name: Velineon VXL-8s
• ESC Type: Brushless
• ESC Case Size: 2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
• ESC Weight: 7.60 ounces (215.5 g)
• Motor Connectors: 6.5 mm bullet connectors
• Battery Connectors: Traxxas High-Current Connectors
• ESC Power Wire: 10 gauge Maxx Cable

What’s In The Box

• X-Maxx, Ready-To-Race model with Traxxas Big Block brushless motor
• VXL-8s waterproof electronic speed control with integrated telemetry
• Quick Start Guide
• TQi 2.4 GHz radio system
• High quality maintenance tools
