Description

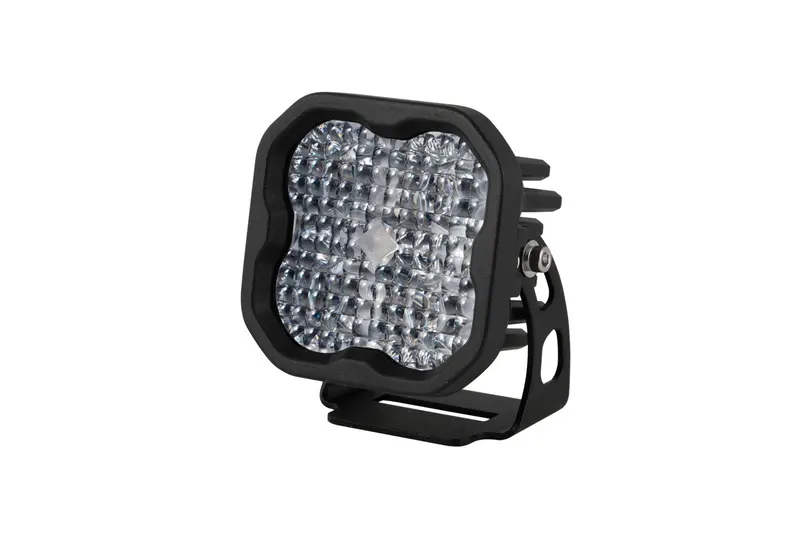

Introducing the SS3 3 inch LED Pod! Featuring higher output intensity than any other 3 inch light on the market these LED pods have been designed for maximum functionality with custom-engineered TIR optics shining in highly useful beam patterns all in a durable package. All Stage Series LED pods are available in a cool white or selective yellow color and sport or pro power levels.
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the SS3 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency. The total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.
Backlight Functionality. The Stage Series 3inch LED Pod is now available with a distinctive backlight in your choice of white amber red and blue. The SS3’s backlight fully illuminates the TIR optic providing a more unique and modern look than the small indicator LEDs found in other products.
Simple connections. All SS3 LED pods feature a custom-molded DT type Deutsch-style connector on the back and come with a 6-inch pigtail with bare leads.
Features:
- Modern TIR optics provide highest intensity on the market
- Backlight accent feature available in white amber red and blue
- Durable powdercoated aluminum construction
- Integrated Deutsch-style connector
- Engineered and Assembled in USA
Included in the box:
- One (1) SS3 3 inch LED Pod
- One (1) Deutsch-style wire pigtail
- One (1) Mounting bracket and hardware
Resources
Installation Instructions
Specifications:
| beam_angle | 80×50 Degrees |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/diode%20ASAP.png |
| color_l | White |
| Connector | Deutsch DT Input |
| height | 4.0 |
| last_update | 2023-02-21 02:28:53 |
| last_update | 2023-03-20 09:20:54 |
| last_update | 2023-06-21 14:58:52 |
| length | 14.0 |
| lens_material | Polycarbonate |
| light_pattern | Flood |
| lumens | 3000 Lumens |
| LUX | 3 100 cd |
| material_l | Aluminum Casting Rubber Gasket |
| material_l | Aluminum Casting, Rubber Gasket |
| Series | SS3 |
| sold_as | Each |
| Universal | Yes |
| vehicle_type | Jeep |
| vehicle_type | Jeep|Truck/SUV|Car |
| volts | 9-16V |
| Warranty | 8 Year Warranty |
| waterproof_rating | IP69K Waterproof, High Pressure |
| weight | 3.0 |
| width | 11.0 |
