FX Luminaire LD LED Ledge Light – Bronze Housing, 20W, 2700K Output

Description

FX Luminaire – LD LED Ledge Light (Bronze, 20W-2700K)

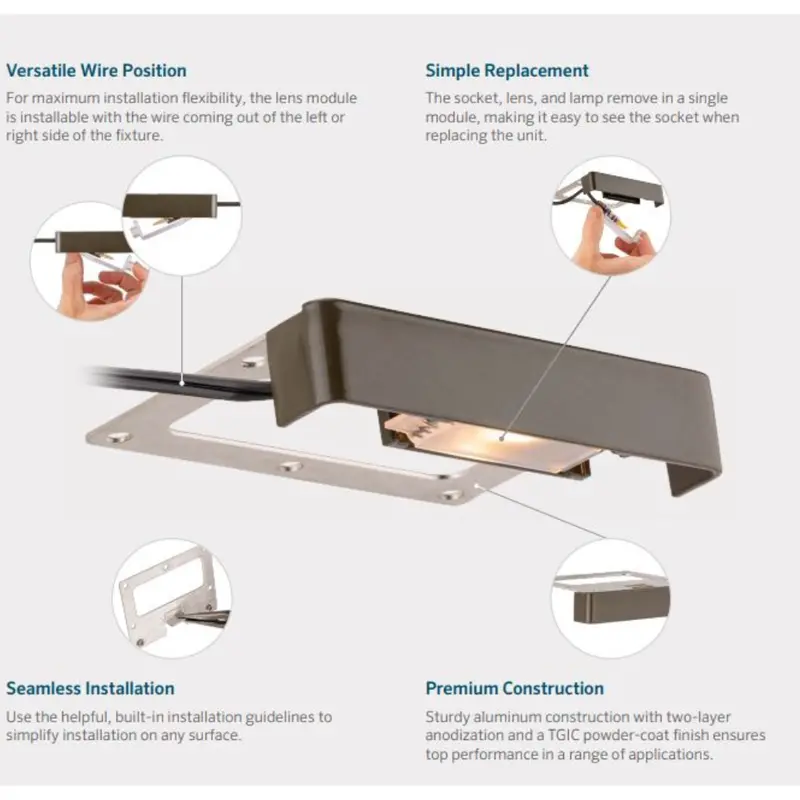

With an innovative snap-on lens, the LD ledge light is easy to install and service. At less than 5″ (127 mm) wide, it shines as FX Luminaire’s smallest ledge light.

Included Accessories & Parts

• Lamp Included: 1.3 VA, 2700K G4 LED lamp (20 W equivalent lamp)
• 10′ (3 m) lead wire, and mounting bracket.

Features:

• Die-cast aluminum construction
• Superior outdoor TGIC powder-coated finish options
• Silicone-encapsulated COB LED
• Tamper-resistant features
• Compatible with Luxor® technology
• Phase dimmable
• Input voltage: 10–15 VAC/VDC
• Please email [email protected] if you need any additional Power Accessories

Specifications:

• Total Lumens (lm) – 75
• Input Voltage (V) – 10 to 15
• Power Consumption (VA) – 1.3
• Efficacy (Lumens per Watt) – 62
• Color Temperature (CCT) – 2700K
• Color Rendering Index (CRI) – 83+
• Maximum Candela (cd) – 32
• Halogen Equivalent (W) – 20
• Dimming – Conult Transformer Specifications
• Minimum Rated Life (L70) – 33,000 hrs

Downloads & Resources

• LD Install Sheet
• Spec Sheet
• LD Key Benefit
• Hardscape Designer Guide
• Up Lights Support
