UNVLS DS2300WB Brass Adjustable Spot Light – 3W, 2700K, 40° Beam Angle

Description

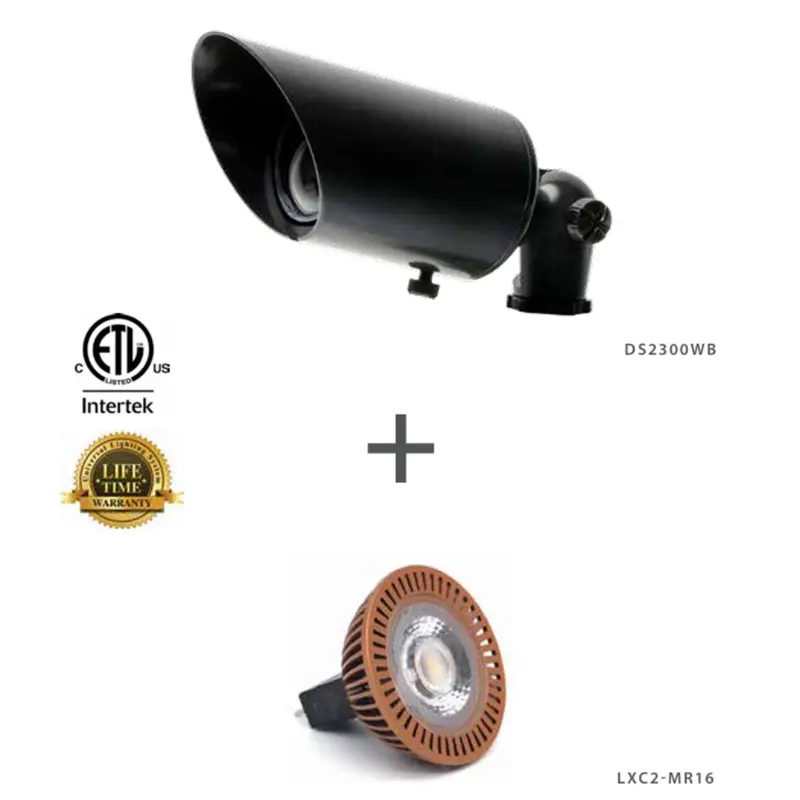

Universal Lighting Systems – DS2300WB-LXC2 – Directional Spot Light (Weathered Brass Finish) with 3-Watt 2700K 40° MR16 LED Lamp pre-installed

The DS2300WB-LXC2 includes:

• DS2300WB cast brass Weathered Brass finish spotlight
• (GS1) ABS ground stake, 1/2” NPT thread, slotted for ease
  of installation
• LXC2-MR16-FL-27K 40° LED lamp
• Includes two AC-102 silicone filled wire connectors
• 3’ – #18/2 direct bury landscape lighting wire
• Fixture – lifetime warranty
• LED lamp – 7 Year warranty

Fixture Material/Features

•  Heavy duty cast brass
• Shock and heat resistant convex glass lens
• EPDM rubber bug plug, prevents moisture/bugs from entering fixture
• Thumb screw on knuckle for easy field adjustment
• Double O ring seal for added moisture protection
• (WB) Weathered Brass: WB Brass finish will patina / tarnish depending on
  environmental conditions
• Fixture – lifetime warranty

Fixture Specifications

• Fixture Material: Heavy duty cast brass.
• Finish: 7 stage chemically aged, weathered bronze (WB) brass finish. Finish will patina / tarnish depending on environmental conditions.
• Socket Type: Hi-temp ceramic socket w/ nickel contacts, stainless
  steel springs and Teflon jacketed wire leads.
• Lens Type: Clear heat resistant lens
• Lamp Type: MR-16 50w max
• Mounting/Fasteners: Brass knuckle screw. Included (GS1) ABS ground stake,
  ½” NPT tread slotted for easy wire installation.
• Wiring: EPDM rubber bug plug with prewired 3’ 18/2 awg direct-bury landscape lighting wire.
• Certification: CETL listed and approved
• Dimensions: 5.25” L x 2.5” W

Lamp Specifications

• LXC2-MR16-FL-27K
• 9-15 V AC/DC
• Constant current driver for long life (40,000 hours)
• FCC certified
• C ETL listed and approved
• 40 degree flood
• 2700K
• 250 Lumens
• COB technology

Electrical

• 12 volt fixture
• 3’ – #18/2 direct bury landscape lighting wire
• HI-temp ceramic socket w/nickel contacts, stainless steel springs, and Teflon jacketed wire leads
• Lamp required – MR16 50 W Max (included)
• Low voltage transformer required (not included)
• C ETL listed and approved

Downloads

• Spec Sheet
• Installation Sheet
• Brochure
