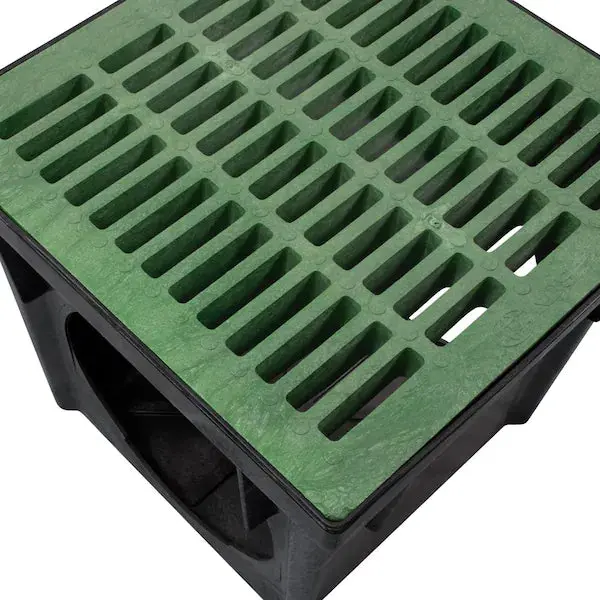

NDS 24-Inch Square Dual-Hole Catch Basin Kit with Green Grate (2400GRKIT)

Description

NDS 24″ Catch Basin Kit with Green Plastic Grate

Kit Components:

• (1) 24″ Two-Opening Catch Basin #2400
• (1) 24″ Green Square Grate #2412
  • Structural Foam Polyolefin Grate with UV inhibitor. Flow Capacity 708 GPM.
• (2) Outlet Adapter for 10” & 12” Pipe #2410
• (1) Outlet Adapter for 8″ Pipe #1888
• (2) 8” Reducer Rings #1890
• (1) Basin Plug #1206

Pipe Compatibility:

• 8″, 10″ & 12″ sewer and drain
• 10″ & 12″ dual-wall corrugated
• 12″ single-wall corrugated
• 8″ corrugated
• 3”, 4” & 6” drain pipes using outlet adapters (#1243,#1245, #1266 – Not Included)

Applications

When stormwater causes flooding on playgrounds and playing fields, or in parking lots and shopping plazas, it’s a sign the excess water isn’t able to properly drain. If the problem isn’t fixed, it can lead to safety hazards and sinkholes, not to mention eroding asphalt and costly damage to the property. NDS 24” Catch Basin collects water and directs it to connected drain pipes; the pipes carry the water to a discharge point downstream such as a pop-up emitter, or to percolate into the ground with a dry well or infiltration trench.

The large catch basin is made with polyethylene and built tough to handle the demands of residential, commercial, and industrial environments. Connects to 8” – 12” drain pipes with designated outlet adapters for a soil-tight fit. 18” catch basin drain grate will block debris from entering and clogging the drainage system.

• Collects excess surface water from lawn, landscape, residential driveways and garages.
• Suitable for light vehicular traffic when properly installed
• Load Rating: Class B
  • Loads of 61-175 psi.
  • Recommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 m.p.h.
• Suitable for both landscape and hardscape applications
• Ablility to withstand normal abuse in landscaping applications
• sump area collects debris and helps prevent clogged pipes
• 5 psi maximum working pressure
• Fade & rust resistant
• Lightweight
• Easy to install.
• Part of NDS 24″ Catch Basin Series.
• Black Catch Basin with Black Grate

Manuals and Literature

• Sell Sheet
• Catch Basin Brochure
