UNVLS LL6609 Bronze 6-Inch Ledge Light with Integrated 2700K LED Module

Description

Universal Lighting Systems – LL6609BZ-27K – Universal 6” Ledge Light & LED Module (Bronze Finish) 2700K with Under Cap Mounting Bracket and Glare Shield

The LL6609BZ-27K includes:

• LL6609 – 6” aluminum LED replaceable ledge light with under cap mounting bracket and glare shield with Weather Resistant Bronze Finish
• Includes two AC-102 silicone filled wire connectors
• 10’ – #18/2 direct bury landscape lighting wire
• Fixture – 10 year warranty
• LED module – 10 Year warranty

Fixture Material/Features

• Die cast aluminum powder coated bronze fixture
• Bronze Weather Resistant Polyester Powder Coated Finish
• 2700K LED replaceable ledge light with under cap mounting bracket
  and glare shield

Fixture Specifications

• Fixture Material: Heavy duty cast aluminum
• Finish: Weather resistant polyester powder coated finish – (BZ) Bronze
• LED Module: 100 lumens, 1.5 Watts, VA 2, .62 PF

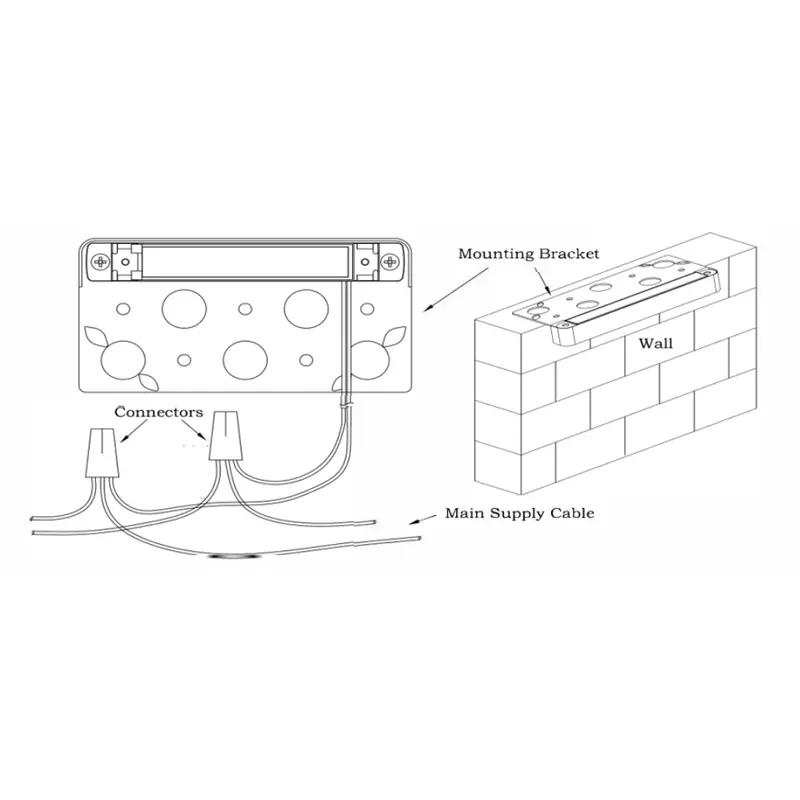

• Mounting/Fasteners: Stainless Steel fasteners and masonry bracket.
• Wiring: prewired 10’ 18/2 awg direct-bury landscape lighting wire.
• Certification: CETL listed and approved
• Dimensions: 7”W x .9”H x 3”D

LED – Lighting Module

• LED integrated – no lamp required
• 100 lumens, 1.5 Watts, VA 2, .62 PF
• Kelvin Temperature 2700K

Electrical

• Input 9-15 volts
• 10’ – #18/2 direct bury landscape lighting wire
• No lamp required
• LED diodes have 90° beam spread
• Low voltage transformer required (not included)
• Includes wire connectors
• C ETL listed and approved
• FCC certified

Downloads

• Spec Sheet
• Installation Sheet
• Brochure
